HKS 2JZ GTE 3.4L Stroker Kit w/ Crankshaft Rods and Pistons

BOX#1 LWH: 341 X 287 X 230 (8kg),
BOX#2 LWH : 840 X 250 X 190 (27kg)
Capacity: 3352.8
Type: D87-D22
Boring/Honing modification: Required
Full flow modification: Not required

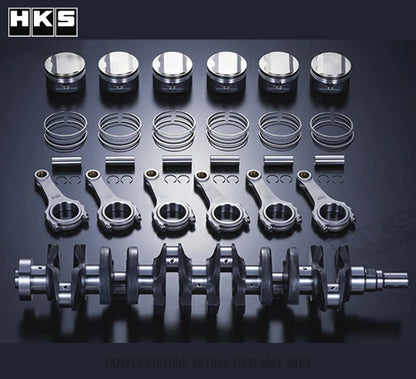

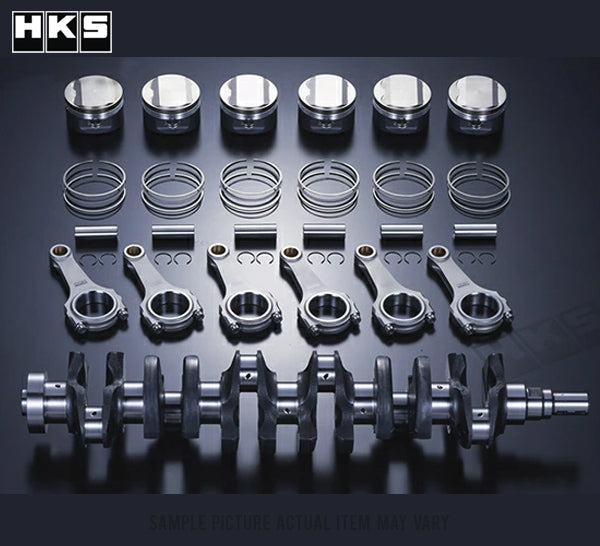

Nickel Plated Forged Piston kit + Billet Crankshaft + H Beam Connecting Rods.
Recommended RPM limit 7500rpm

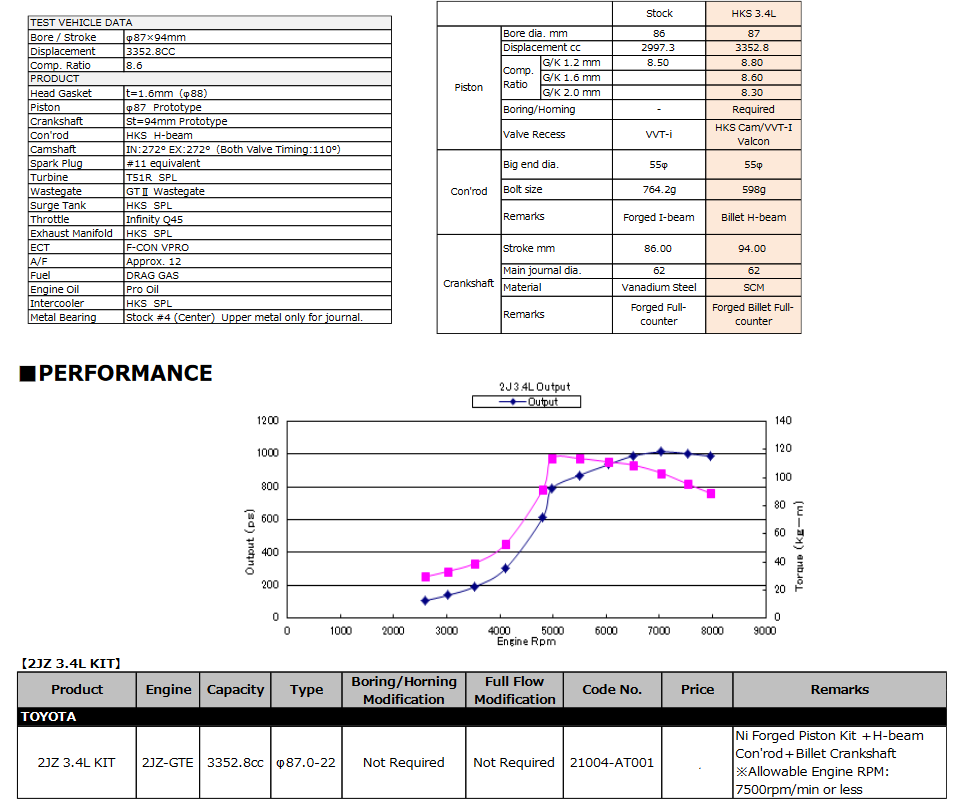

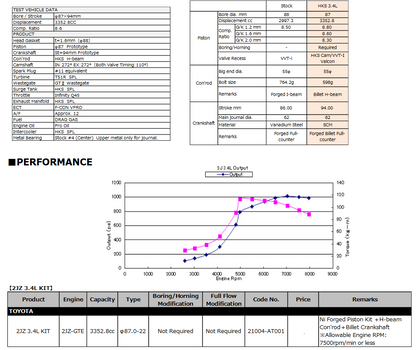

HKS 2JZ-GTE 3.4L Kit makes approximately 1000ps power levels possible. High quality “MADE IN JAPAN”
1015(ps)-110(kgf・m)！！
※In-house test result. Maximum engine RPM – Approx. 7500rpm

POINT① PISTON KIT
• Carefully selected specially forged raw materials used.
• HKS original Ni plated and molybdenum coated pistons are included.
• Ni plating treatment was done on the top side and top land groove which enhances durability against knock, high combustion
pressure and protects top land groove from deforming.
• Ti coated top ring improves its frictional properties and scuffing resistance characteristic .
POINT② CONNECTING ROD
• Highly strength H-beam design. The engine capacity is increased by increased stroke and torque at low -mid speed range is
improved.
• Compatible with standard stroke
POINT③ CRANKSHAFT STROKE 94.0ｍｍ
• HKS special forged material made high strength crankshaft.
• Long stroke and lightweight counterweighted crankshaft was designed to improve the engine response.
POINT④ ADDITIONAL MODIFICATION
• 1mm over sized pistons requires cylinder bore and honing.
• Recess modification inside the engine block is not required.
※ Recess modification may be required depending on the cylinder block's individual difference.
